Data Center
Cooling Systems Design
Cooling Systems:
Thermal Efficiency and Redundant Cooling Solutions
Our cooling strategies maintain stable server temperatures and improve data center energy efficiency. From in-row to CDU-based liquid cooling, our systems are tailored to support high-density deployments while minimizing thermal risk and operational costs.
Design Scope: CRAC, CDU, In-row & Free Cooling – Cooling Systems
INDOOR COOLING
01 CRAC units
CRAC systems are laid out for even air distribution and thermal containment across hot and cold aisles.
02 In-row cooling units
In-row designs place cooling close to the heat source, maximizing localized efficiency and rack-level predictability.
03 Air handlers
Air handlers are designed to support multiple zones, variable airflow, and filtration based on data hall configuration.
04 In-rack cooling
In-rack systems are designed for high-density deployments, delivering direct airflow or liquid cooling to each device.
05 Liquid cooling (CDU)
CDU layouts are engineered for closed-loop cooling of high-performance compute, with modular expansion in mind.
COOLING SYSTEMS
EXTERNAL COOLING
01 Dry coolers
Dry cooler design minimizes water usage while supporting ambient-based free cooling strategies.
02 Chillers
Chillers are sized and piped for load diversity, N+1 redundancy, and integration with building automation.
03 Free cooling
Free cooling is planned for climates where outside air can directly supplement or replace mechanical cooling.
COOLING SYSTEMS
PIPING
01 Piping systems
Chilled water and refrigerant piping is routed for minimal pressure loss and future capacity upgrades.

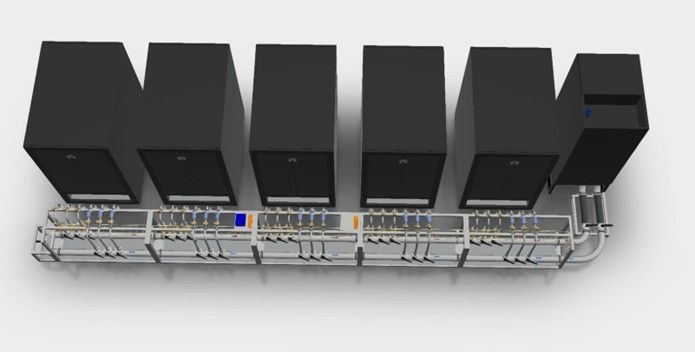

Liquid Cooling and Secondary Fluid Network Services
Discover our Vertiv-approved liquid cooling design and methodology to future-proof your data center investment.
Contact us
Ready to build or upgrade your data center with precision and scalability in mind?
Our expert design team is here to support you at every step — from space planning and rack systems to power, cooling, security, and equipment commissioning.
Contact us to create a tailored data center environment that meets your performance, energy, and uptime goals.
